2.11 Serial Peripheral Interface (SPI)
The MRF89XA communicates with the host
microcontroller through a 4-wire SPI port as a slave
device. An SPI-compatible serial interface allows the
user to select, command and monitor the status of the
MRF89XA through the host microcontroller. All the
registers are addressed through the specific addresses
to control, configure and read status bytes.
The SPI in the MRF89XA consists of the following two
sub-blocks, as illustrated in Figure 2-11 .
? SPI CONFIG: This sub-block is used in all data
operation modes to read and write the configuration
registers which control all the parameters of the chip
(operating mode, frequency and bit rate).
? SPI DATA: This sub-block is used in Buffered and
Packet mode to write and read data bytes to and
from the FIFO. (FIFO Interrupts can be used to
manage the FIFO content).
Both of these SPIs are configured in Slave mode while
the host microcontroller is configured as the master.
They have separate selection pins (CSCON and
CSDAT) but share the remaining pins:
? SCK (SPI Clock): Clock signal provided by the
host microcontroller
? SDI (SPI Input): Data Input signal provided by the
host microcontroller
? SDO (SPI Output): Data Output signal provided
by the MRF89XA
As listed in Table 2-5 , only one interface can be
selected at a time with CSCON is having the priority:
All the parameters can be programmed and set through
the SPI module. Any of these auxiliary functions can be
disabled when it is not required. After power-on, all
parameters are set to default values. The programmed
values are retained during Sleep mode. The interface
supports the read out of a status register, which pro-
vides detailed information about the status of the trans-
ceiver and the received data.
The MRF89XA supports SPI mode 0,0, which requires
the SCK to remain idle in a low state. The CS pins,
CSCON and CSDAT based on the mode (pin 14 and
15), must be held low to enable communication
between the host microcontroller and the MRF89XA.
The device’s timing specification details are listed in
Table 5-7 . The SDO pin defaults to a high impedance
(hi-Z) state when any of the CS pins are high (the
MRF89XA is not selected). This pin has a tri-state
buffer and uses a bus hold logic.
As the device uses byte writes, any of the Chip Select
(CS) pins should be pulled low for 8 bits. Data bits on
the SDI pin (pin 17) are shifted into the device upon the
rising edge of the clock on the SCK pin (pin 18)
whenever the CS pins are low. The maximum clock
frequency for the SPI clock for CONFIG mode is 6
MHz. However, maximum SPI Clock for DATA mode (to
read/write FIFO) is 1 MHz. Data is received by the
transceiver through the SDI pin and is clocked on the
rising edge of SCK. The MRF89XA sends the data
through the SDO pin and is clocked out on the falling
edge of SCK. The Most Significant bit (MSb) is sent first
in any data.
The SPI sequence diagrams are illustrated in
TABLE 2-5:
CONFIG VS. DATA SPI
SELECTION
Figure 2-12 through Figure 2-15 .
CSDAT
0
0
1
1
CSCON
0
1
0
1
SPI
CONFIG
DATA
CONFIG
None

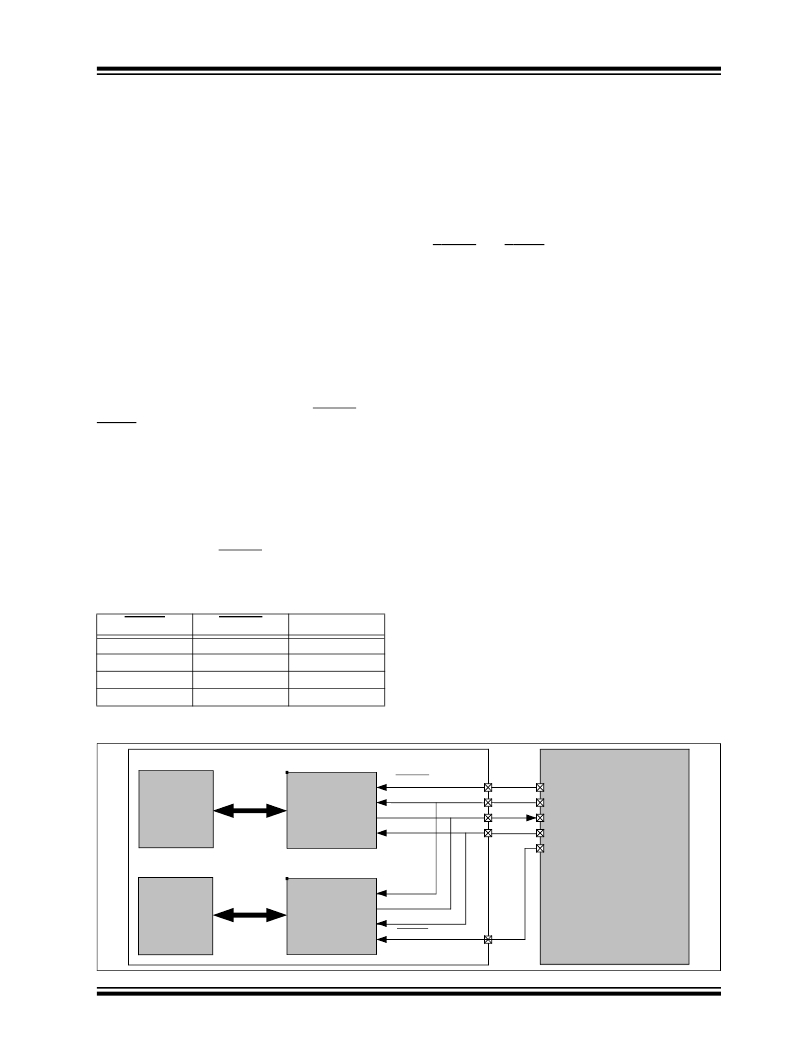

FIGURE 2-11:
SPI OVERVIEW AND HOST MICROCONTROLLER CONNECTIONS
MRF89XA
Config.
Configuration
Registers
SPI
CONFIG
(Slave)
CSCON
SDI
SDO
SCK
I/O
SDO
SDI
SCK
I/O
PIC ? Microcontroller
SPI
(Master)
FIFO
DATA
(Slave)
CSDAT
? 2010–2011 Microchip Technology Inc.
Preliminary
DS70622C-page 23
